What Is Direct Steam Injection (DSI) and How Does It Work?

 If your process relies on steam for heating, chances are you've accepted long heat-up times, fouled heat exchangers, and rising energy costs as part of doing business. But they don't have to be. As manufacturers continue looking for ways to increase throughput, improve product quality, and reduce operating costs, many are rethinking one of the most overlooked parts of their process: how heat is transferred. Direct Steam Injection (DSI) offers a faster, more efficient alternative to traditional indirect heating methods, helping facilities heat process fluids in seconds instead of minutes while eliminating many of the maintenance and performance issues that come with conventional heat exchangers.

Heating shouldn't be the slowest step in your process

Ask a plant engineer where the inefficiency in their line lives, and "heating" rarely makes the top of the list until you start measuring it. Long heat-up times stretch batch cycles. Tank coils foul. Heat exchangers scorch the very ingredient they were specified to protect. Steam usage creeps up year over year, but nobody can quite say why.

For a growing number of food, beverage, chemical, and water-treatment operations, the answer is to stop heating fluids indirectly and start heating them directly. The technology that makes that possible is Direct Steam Injection (DSI) and the way it solves these problems is straightforward once you see how it works.

What is Direct Steam Injection?

Direct Steam Injection is exactly what it sounds like: instead of pushing your process fluid past a hot surface that's heated by steam (the way a shell-and-tube exchanger or jacketed tank works), you inject steam directly into the fluid stream. The steam condenses on contact, transferring 100% of its latent and sensible heat into the product.

Because the heat transfer happens through condensation rather than conduction across a metal wall, two things change. First, the rate of heat transfer is dramatically higher; temperature changes that take minutes in a tank happen in fractions of a second in a DSI heater. Second, there is no hot surface for the product to touch, so the fouling and scorching that plague indirect systems largely disappear.

How a DSI heater actually works

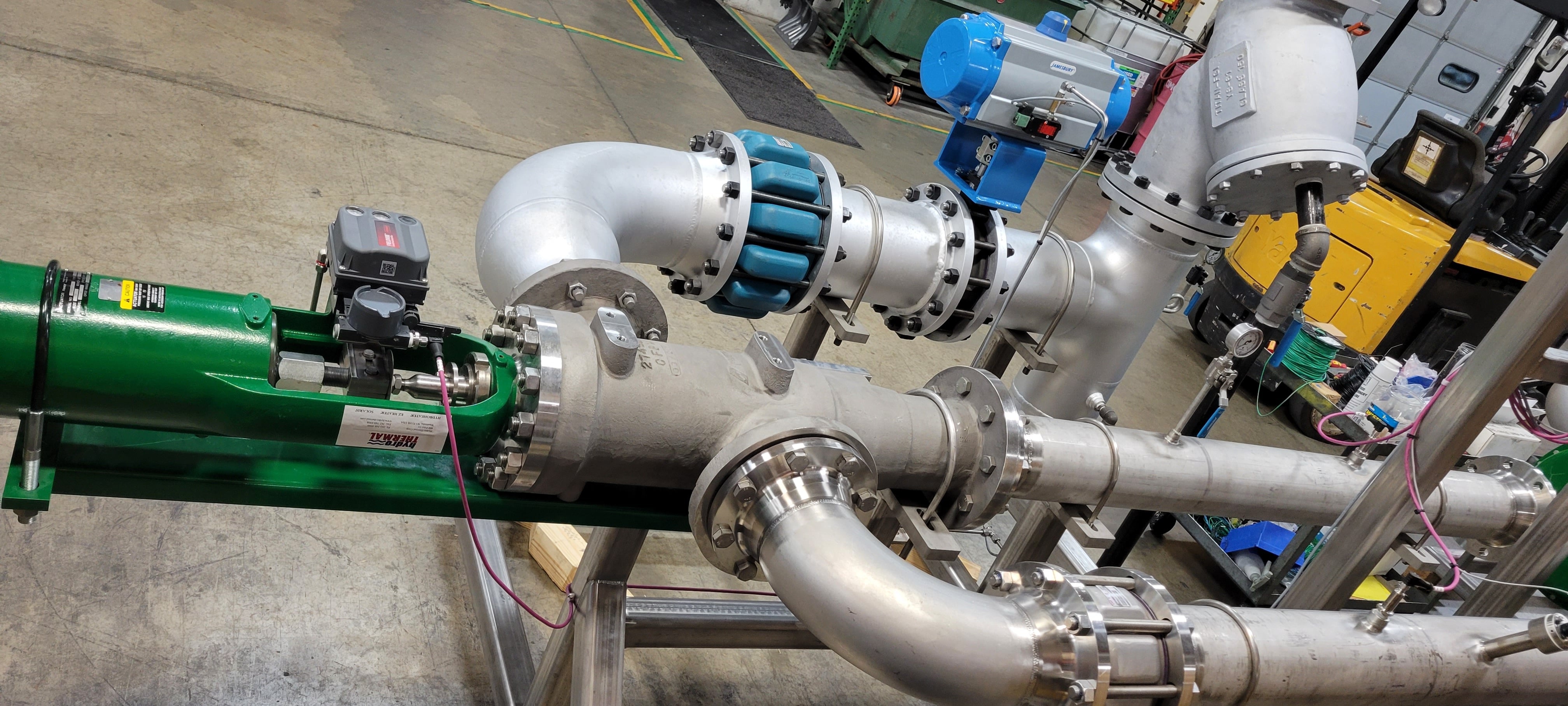

A well-engineered DSI heater is not a tee fitting with a steam line bolted to it. Inside a unit like the Hydro-Thermal Hydroheater, an internally modulating plug varies the steam injection area in real time as flow and temperature change. Steam enters through a series of small ports and is injected into the fluid at sonic velocity, where it condenses almost instantly. The result is a highly turbulent mixing zone that delivers stable, repeatable temperatures even when upstream flow or steam pressure swings.

That last point is the difference between a DSI heater and a simple sparger. A sparger injects steam and hopes. An engineered DSI heater modulates steam injection to hold a setpoint.

DSI versus indirect heating: what changes

Indirect heating shell-and-tube exchangers, plate heat exchangers, jacketed tanks, and tubular heaters has a place. But there are five practical differences process engineers consistently report after switching applications to DSI:

• Heat-up time drops from minutes to seconds. A batch tank that takes 40 minutes to come up on a steam jacket can hit setpoint in a single pass through a DSI heater.
• Temperature control gets tighter. Modulating DSI heaters routinely hold ±1 °F of setpoint, which matters for anything thermally sensitive.
• Fouling and scorching largely disappear. There is no hot surface for proteins, starches, or solids to bake onto.
• Steam efficiency climbs to roughly 100%. Indirect systems lose energy through jacket and shell surfaces and through flash and condensate handling; DSI puts the energy where you want it.
• Footprint shrinks. A DSI heater replaces a tank coil, an exchanger, or a fired water heater in a fraction of the space.

Where DSI shines

DSI is not a universal replacement for every heat exchanger. It is, however, the better answer for a defined set of conditions:

• Process fluids that scorch or foul on hot surfaces: starches, dairy, protein slurries, sugar solutions.
• Applications that need rapid heating, including CIP supply, ingredient batching, and process water on demand.
• Viscous fluids and slurries where indirect heat transfer is poor.
• Operations where tight temperature control affects product quality or yield.
• Plants looking to reduce steam consumption and free up boiler capacity.

Is DSI right for your process?

If you're losing throughput to heat-up time, fighting fouling on an exchanger, or carrying a steam bill that's grown faster than your output, DSI deserves a serious look. The technology is mature, the application engineering is well understood, and the payback in the right application is usually measured in months, not years.

Crane Engineering works with Hydro-Thermal , the manufacturer of Hydroheater, EZ Heater, Silverline, and the rest of the DSI portfolio. We help our customers evaluate whether DSI is the right fit, specify the right heater for the application, and integrate it into existing process and control systems.

Want to know if DSI fits your process? Talk with a Crane Engineering process specialist; we'll walk through your application, flag the questions worth asking, and tell you straight if DSI isn't the right tool. Schedule a conversation.
